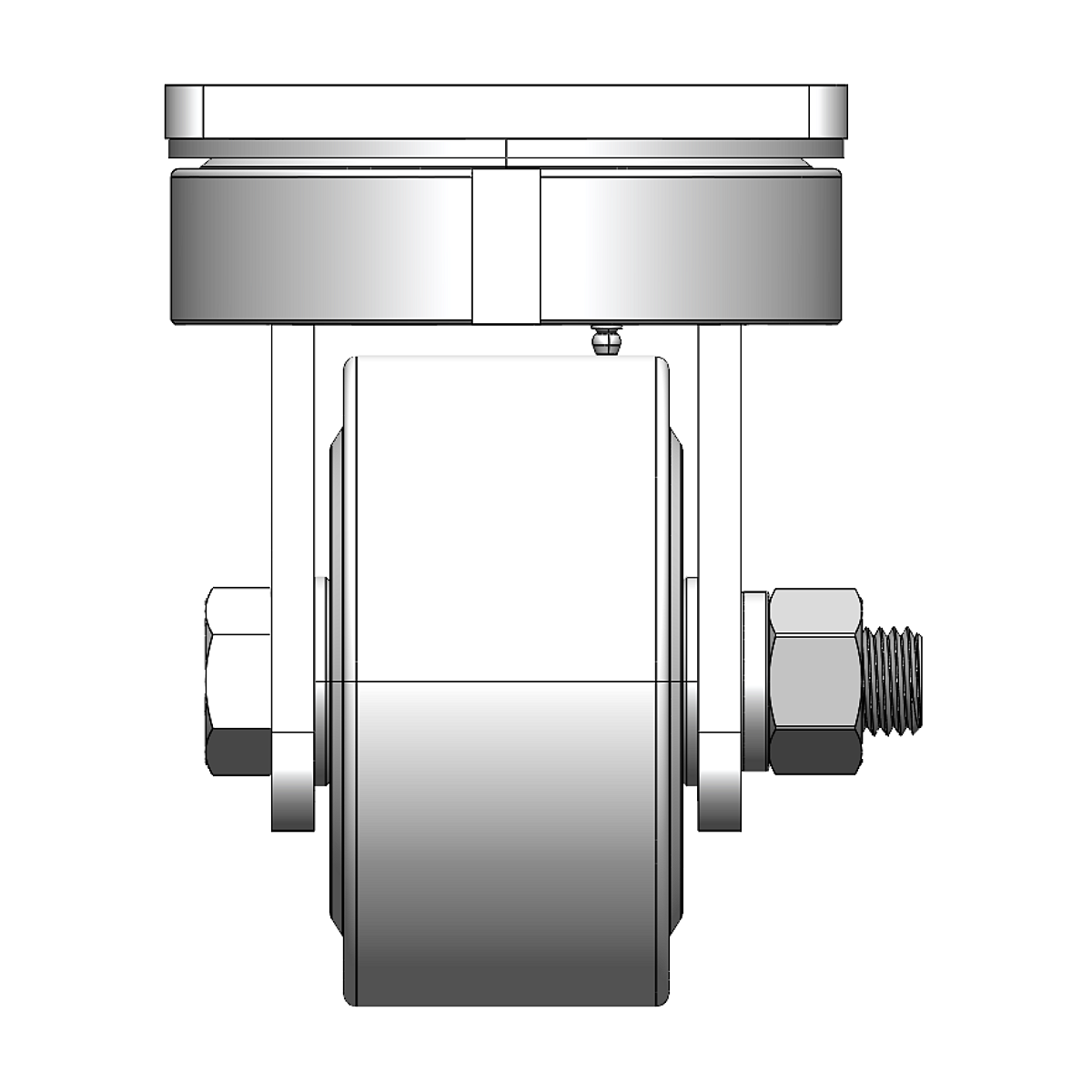

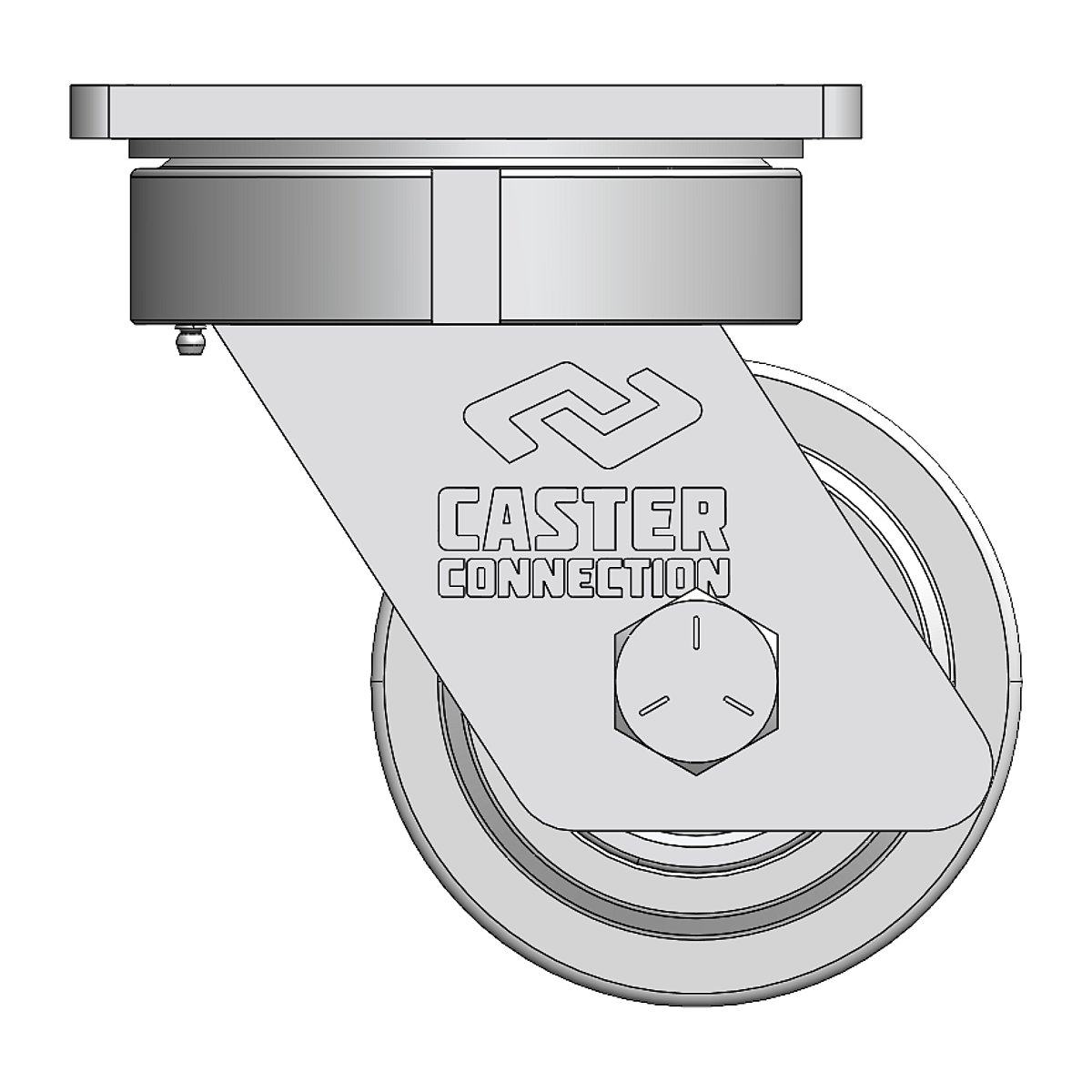

CC-94CN-600300-40-TV is a 6" CC Juggernaut Cast Nylon Kingpinless Swivel Caster featuring a 6" x 3" 80 Shore D (+/- 3) Cast Nylon on Flat Tread wheel in a Kingpinless Swivel rig, with an overall height of 8-1/2". This caster features a 6-1/4" x 7-1/4" top plate, a 6308-RS Ball Bearing and has a weight capacity of 6,000 lbs.
CC Juggernaut„ wheels integrate seamlessly with both standard and custom caster rigs, giving engineers and operations teams flexibility when designing for extreme loads. For optimal performance in the most demanding applications, CC Juggernaut is commonly paired with premium heavy-duty rigs such as CC Brawn, a kingpinless rig designed to distribute impact and side loads evenly in high-impact environments, or CC Forge, a forged kingpin rig available in rigid and swivel configurations that offers precision, serviceability, and exceptional load support.
Built for the Heaviest Jobs On Earth
The CC Juggernaut wheel is engineered for the most demanding industrial loads, where failure is not an option. Unlike molded wheels, it is carved from solid cast nylon to deliver exceptional structural integrity and unmatched load-bearing strength. Heavy-duty, oversized precision ball bearings reduce friction, extend wear life, and keep motion smooth under massive weight while limiting long-term maintenance needs. Each wheel is 3 wide and available in 6", 8", 10", and 12" diameters.
Load capacities for each size are:
- 6,000 lbs (6x3)
- 10,000 lbs (8x3)
- 13,000 lbs (10x3)
- 15,500 lbs (12x3)
The CC Juggernaut is designed for heavy manual push/pull applications and for environments where moisture or chemicals are present. Its solid, high-durometer nylon construction handles concentrated loads and demanding industrial conditions where traditional nylon and other wheels cannot perform.
