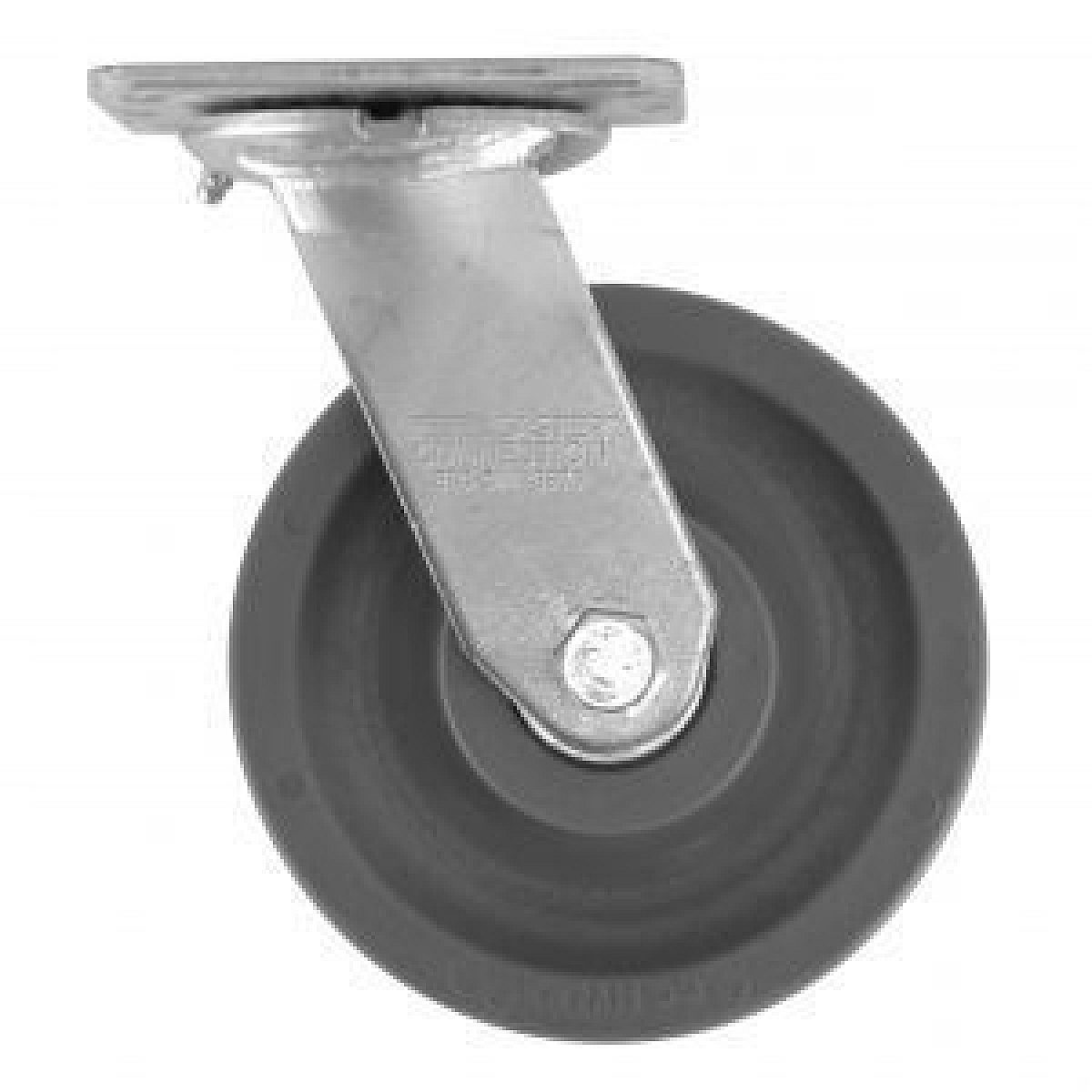

6" x 2" CC Nylex Swivel Caster

Name: CCNYLEX-6S-TP2
SKU: CCNYLEX-6S-TP2
Price: 58.24 USD
Availability: InStock

SKU# CCNYLEX-6S-TP2

Alt. SKU# CC-1230-600200-40-T2

Configuration

Select a Brake:* Select a Swivel Lock:*

$58.24

QTY

Volume discounts are available for bulk or frequent orders. Contact Us.

Specifications

Weight Capacity: 1,500 lbs.
Wheel Diameter: 6"
Wheel Width: 2"
Wheel Material: Nylon
Core Material: Nylon
Overall Height: 7-1/2"

Jump to Full Product Specification

Lead Time to Ship, Shipping & Returns

Lead Time to Ship:: 3-5 Business Days
Ship Weight:: 6 lbs
Brand:: CC Nylex - Caster Connection

30 Day Returns

Shipping and Returns

Details Specifications 3D Drawings Selection Services The Caster Experience

Details

You're viewing caster SKU CC-1230-600200-40-T2 on CasterConnection.com.

The 6" x 2" CC Nylex swivel caster is a great choice for carrying very heavy weight loads. Providing impact absorption and sheer strength components without breakdown, the CC Nylex has an outstanding ability to roll with ease. The wheel's slight crown and hard tread design grant users boundless mobility and performs almost exclusively maintenance-free.

The benefits of the CC Nylex include:

Ability to handle heavy weight loads without breakdown
Impressive impact absorption
Low push-pull force required for movement
Smooth maneuverability with little to no interruption
Resistance to organic diluters, including most cleaning & chemical solutions

Specifications

Wheel Diameter

6"
Wheel Width

2"
Overall Height

7-1/2"
Weight Capacity

1,500 lbs.
Wheel Brand

CC Nylex - Caster Connection
Color

Gray
Wheel Configuration

Single Wheel
Tread Style

Crown Tread
Wheel Material

Nylon
Bearing Type

6203-RS Ball Bearing
Core Material

Nylon
Caster Type

Kingpin Swivel
Mounting Type

Top Plate
Top Plate

4-1/2" x 6-1/4"
Top Plate Bolt Hole Pattern

2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Mounting Bolt Size

1/2"
Lead Time to Ship

3-5 Business Days
Swivel Radius

4-9/16"
Axle Type

Solid Axle
Alternate SKU

CC-1230-600200-40-T2, CCNYLEX-6S-TP2
Durometer

74 Shore D (+/- 5)
Fork Finish

Zinc Plated
Temperature Range

-25 to +225 F
Application

Manual Push/Pull
Environment

Clean, Indoor, Limited Space for Maneuverability, Safety Necessary, Steam, Push/Pull Reduction, Safety, Chemicals Present
Floor Type

Varied-Indoor
Industry

Aerospace, Automotive, Biotechnology, Food Manufacturing, Healthcare, Industrial/Mechanical Engineering, Manufacturing, Material Handling, Technology, Utilities, Electrical/Electronic manufacturing
Noise Reduction

No
Anti Static

No
Dust Cap

No
Overall Height

7-1/2"
