CC VINTAGE CASTERS

CASTER CONNECTION'S

Performance based design backed by our 30 plus years of serving our clients to get the exact casters for their projects. The CC Vintage line of casters represents more than “vintage” casters. These casters complement a diverse range of furniture and fixtures in many different styles, such as classic vintage, steam punk, and modern industrial. Because of the wide variety of styles and options available, you can be confident that you’ll find the perfect caster for your DIY project or your store or business layout.

BROWSE CC VINTAGE CASTERS HERE →
CC VINTAGE CASTERS

WHY CC VINTAGE CASTERS ARE THE BEST



A main advantage that CC Vintage casters provide you is mobility. Imagine being able to move any piece of furniture with ease because it is outfitted with smooth-rolling wheels. When we say “smooth-rolling wheels,” we really mean it.

In fact, we have been in the industrial caster industry for over 30 years. We provide some of the world’s leading industrial manufacturers with high-performing casters. We are first and foremost a caster company of performance.
Because of this, you can feel confident that your CC Vintage casters will perform better than any “aesthetic” casters on the market.

At the same time, your furniture or floor piece will remain firmly in place, particularly when you attach brakes. The wheels, with or without brakes, will be a beautiful aesthetic addition to your project and will differentiate you from other brands or DIYers who have less attention to detail and performance.

2017 CC Vintage Logo
Performance Orange Icon

PERFORMANCE

30 years working with industrial casters helped us design the CC Vintage caster.

Connect Orange Icon

MOUNTING OPTIONS

Get the exact mounting option for your project. We'll help you do it!

Design Orange Icon

DESIGNS

Choose from a variety of different design options.

Mobility Orange icon

MOBILITY OPTIONS

Get your choice of swivel or rigid casters. This allows you to mix the mobility with stability.

Tread Orange Icon

TREAD DESIGN

Protect your floors with the proper tread type, polyurethane. Cast iron is more traditional.

Stop Orange Icon

BRAKE OPTIONS

Brakes come standard on many CC Vintage caster designs.

CC VINTAGE WHEEL TYPES



Cast Iron

SQ-Industrial-Vintage-Coffee-Table-Cast-Iron-Caster-12

Our five-spoked cast-iron wheels come standard in black. The wheels are extremely sturdy and have weight capacities of 260 to 1,200 lbs. per wheel. Because the wheel is composed of cast iron, you should use extreme caution if you use these casters on tile floors or any more fragile surface in general.

Polyurethane on Cast Iron

SQ-Industrial-Vintage-Bookcase-Polyurethane-Tread-Swivel-Caster-21


The five-spoked polyurethane-tread wheel was created as an alternative to the cast-iron wheel. These wheels carry up to around 300 lbs. per wheel and are very sturdy. The major advantage of these wheels is that they roll easily and safely on hardwood or tile floors. They are nonmarking and, therefore, perfect for indoor use.

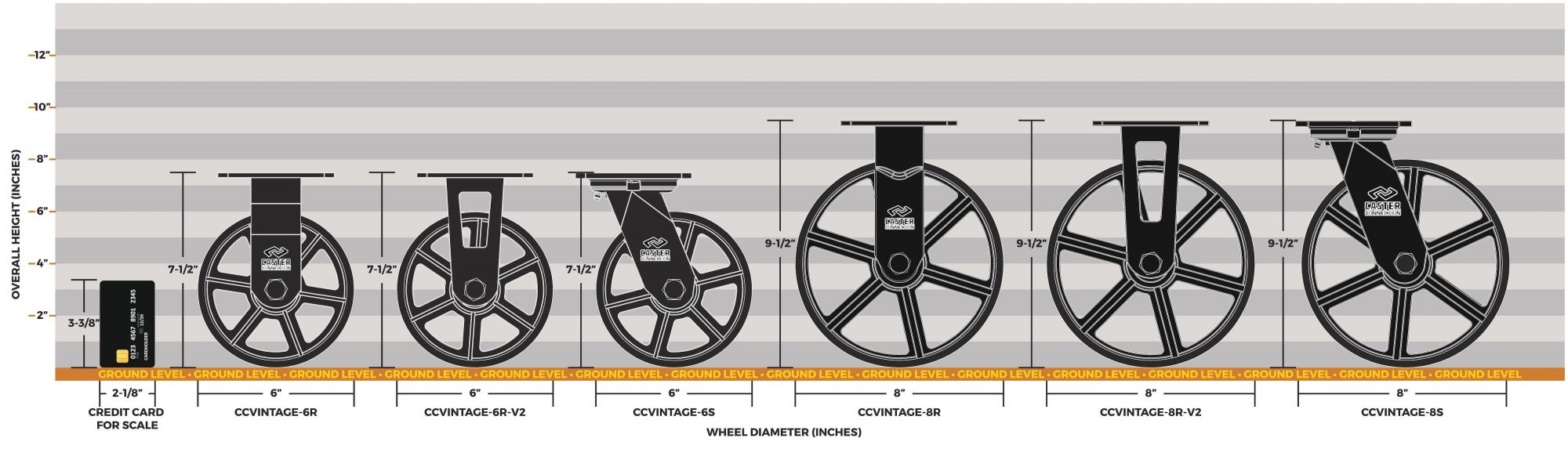

CCV 6x2 8x2 Product Photos Product Size Comparison Chart
CCV 3x125 4x125 5x125 Product Size Comparison Chart

Fork Types



1) Rigid rigs/forks are available in three different styles but only 1 mounting type (top plate):

“V” style (w/ V-shaped cutout):

the 1-1/4” and 2”-wide rigs (4”-diameter wheel and up)

Standard branded CC Vintage:

the 1-1/4”-wide rig (5”-diameter wheel and smaller)

Our “vintage,” sturdy CC Crest rig:

the 2”-wide rig (4”-diameter wheel and up)

2) Swivel rigs/forks are available in 1-1/4” and 2”-wide rigs. The 2”-wide version is only available with a top plate. The 1-1/4” option is available with top plates, threaded stems, expanding adapters, and grip-ring stems.

Mounting Options



Top plate is the classic mounting type, requiring a 5/16” or 3/8” bolt to attach it. It is the most secure and reliable mounting type if you have the appropriate room.

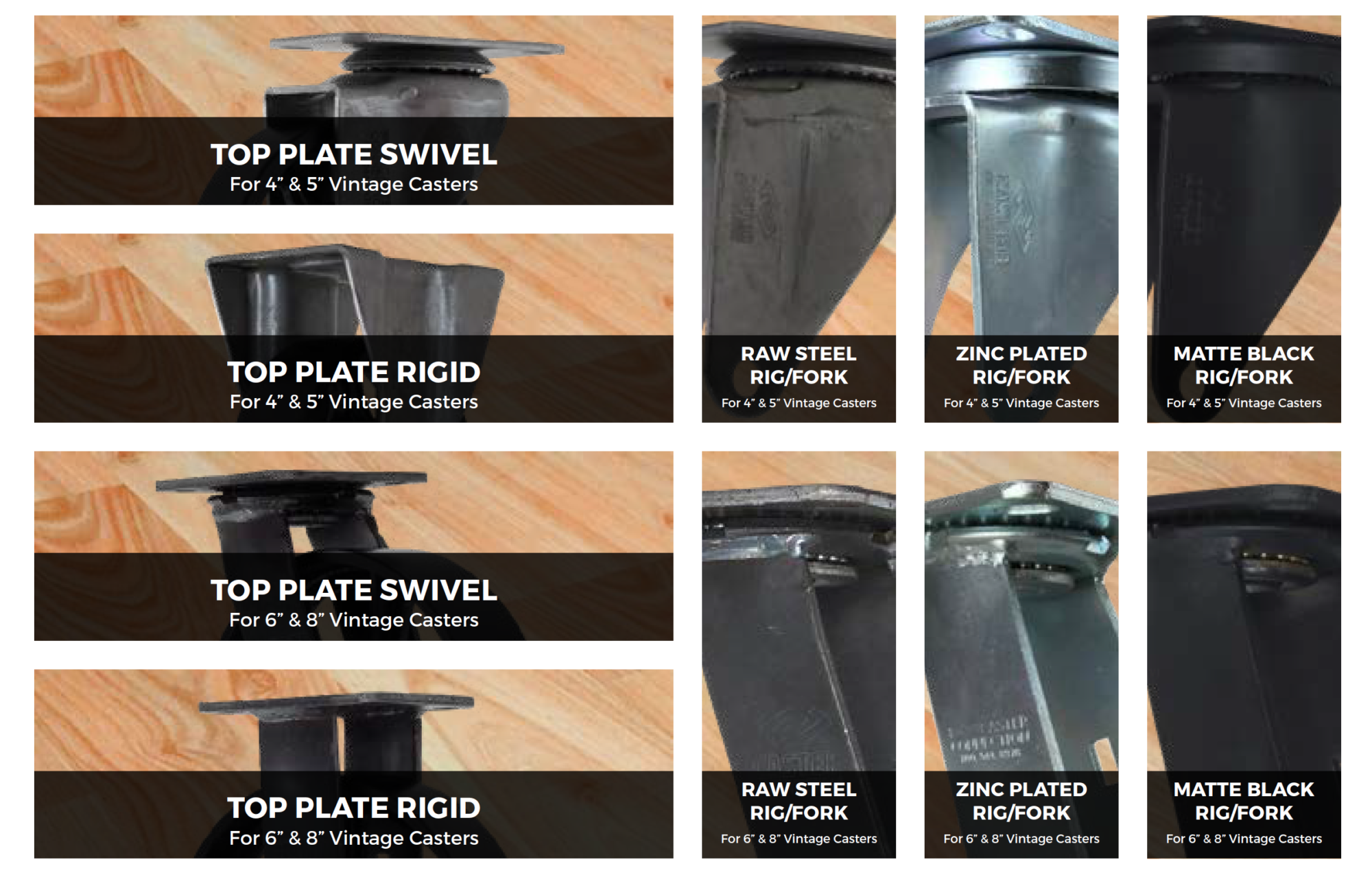

CC Vintage Top Plate Mounting Options

Threaded stems

are ideal for wood or any time your project possess a threaded hole

Expanding adapter kits

are great for holes that are at least 3” deep

Grip-ring stems

are ideal for smaller and shallower holes

Vintage Casters for Furniture Mobility

Because of our 30 plus years of experience with casters that perform at the highest level under the harshest conditions, we wanted our aesthetic casters to still have great performance capabilities. Because of this, any of your furniture or floor sets become, not only stunning aesthetically, but also extremely mobile. Our CC Vintage industrial casters offer you a numberof benefits, including:

• The ability to conveniently move furniture around while cleaning or while resetting floor sets.

• The option to rearrange heavier furniture or racking without taking it apart (or having to ask three friends or fellow employees to help out!).

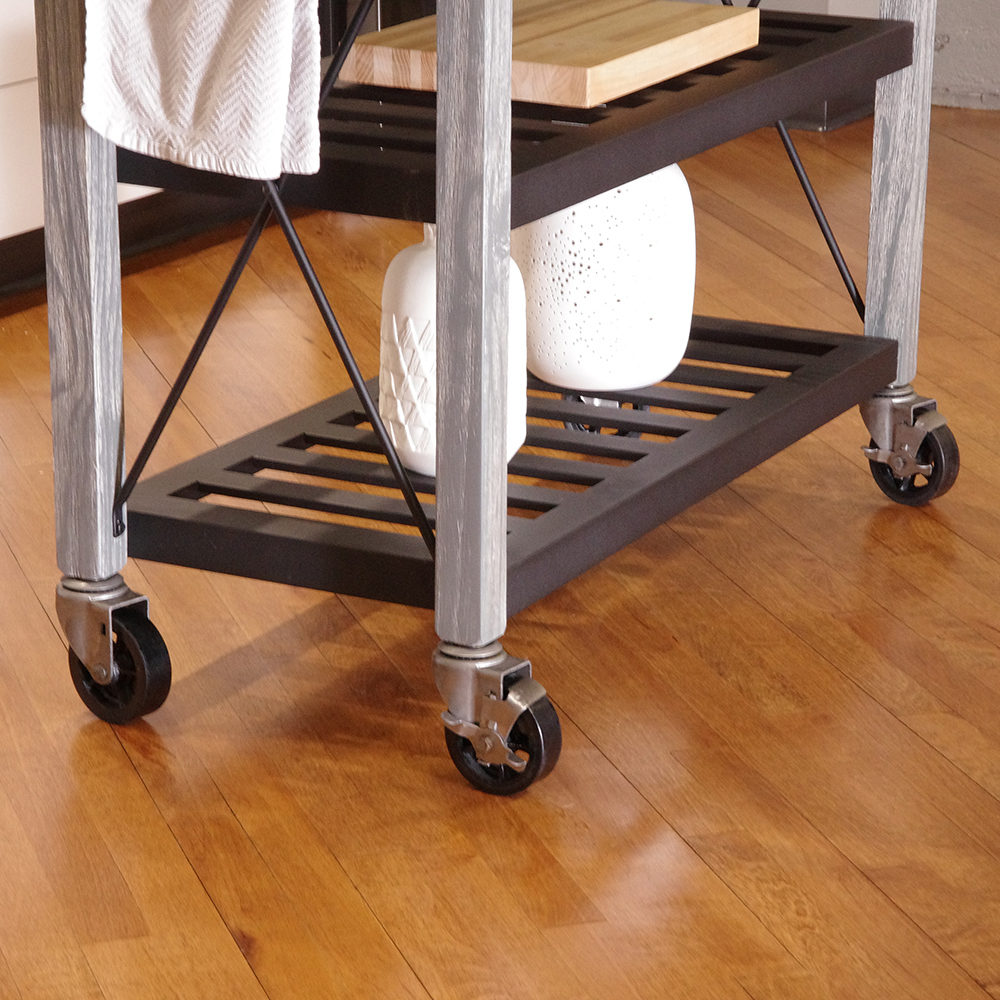

SQ Kitchen Cart Polyurethane Tread Swivel Caster 9

CC Vintage Brochure

Free Download

Check out CC Vintage info, product specs, inspiration and more!

Get Here →
CC Vintage Brochure

Chic, Yet Highly Practical, Casters for Brands

In the past decade, many brick-and-mortar companies have struggled to grow. Studies have shown that when you update your store layout with fresh design features, you improve sales with both new and established clientele. Stylish new casters are a great way to slowly but steadily modify your brand’s design while also enabling you to move and alter floor sets easily. With new casters you can:

• Continually update your brand’s design, starting with casters chic enough to be used in Hollywood movies and in the offices of Silicon Valley’s most popular tech companies

• Easily update your store layouts because of the increased mobility provided by high-performing CC Vintage casters

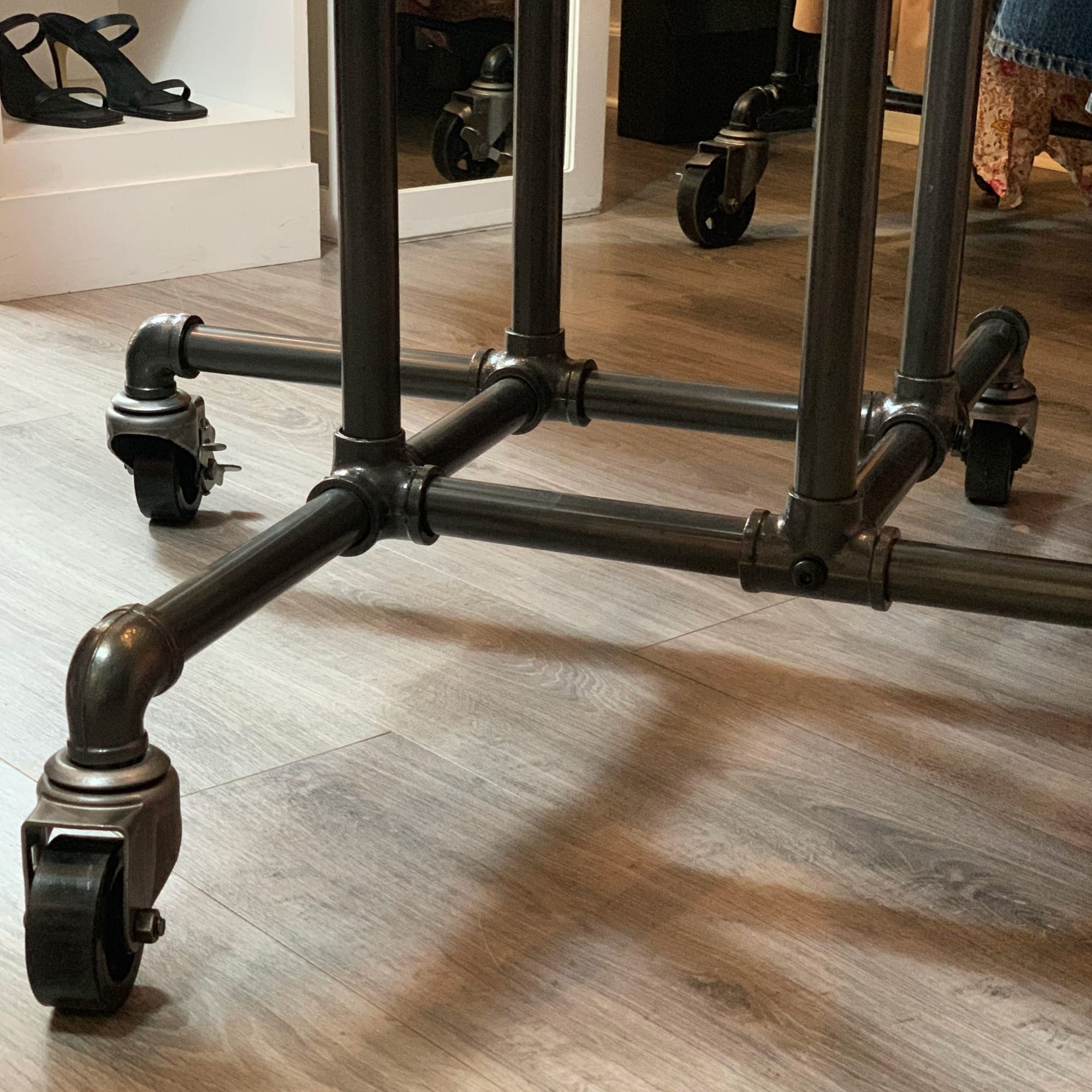

SQ CU Retail Industrial Pipe Garment Rack 3 Inch Vintage Polyurethane Tread Swivel Caster 15

Standard Top Plates and Stems

4” X 4-1/2” Top Plate 1

2-3/8” X 3-5/8” Top Plate 4

Threaded Stem Caster

Threaded stems have a distinct width, thread count and length, ranging from 3/8” to 3/4” wide. This is the most common type of stem caster.

Expanding Stem Caster

Expanding adapters fit into a variety of inner diameter round or square tubes depending on adapter kit and size of tube. This attachment type is great for hollow legs and tubes.

Grip-Ring Stem Caster

Grip ring stems have a small friction ring that keeps the stem in the round hole within the cart. Grip ring stem casters are commonly found on mop bucket casters, office chair casters.

Comparison: Cast Iron Vs. Polyurethane Tread

The most popular options in the CC Vintage line are the cast iron and the polyurethane tread vintage casters. Both of these antique-style casters look very similar at first glance. The differences between the two casters are major.

The cast iron CC Vintage wheel option is the classic, iconic choice that will complete any piece of rustic furniture. Cast iron caster wheels work well on solid ground like concrete or blacktop. They’re rugged enough to wheel outside to a barbeque or to hold up the tool bench in the garage.

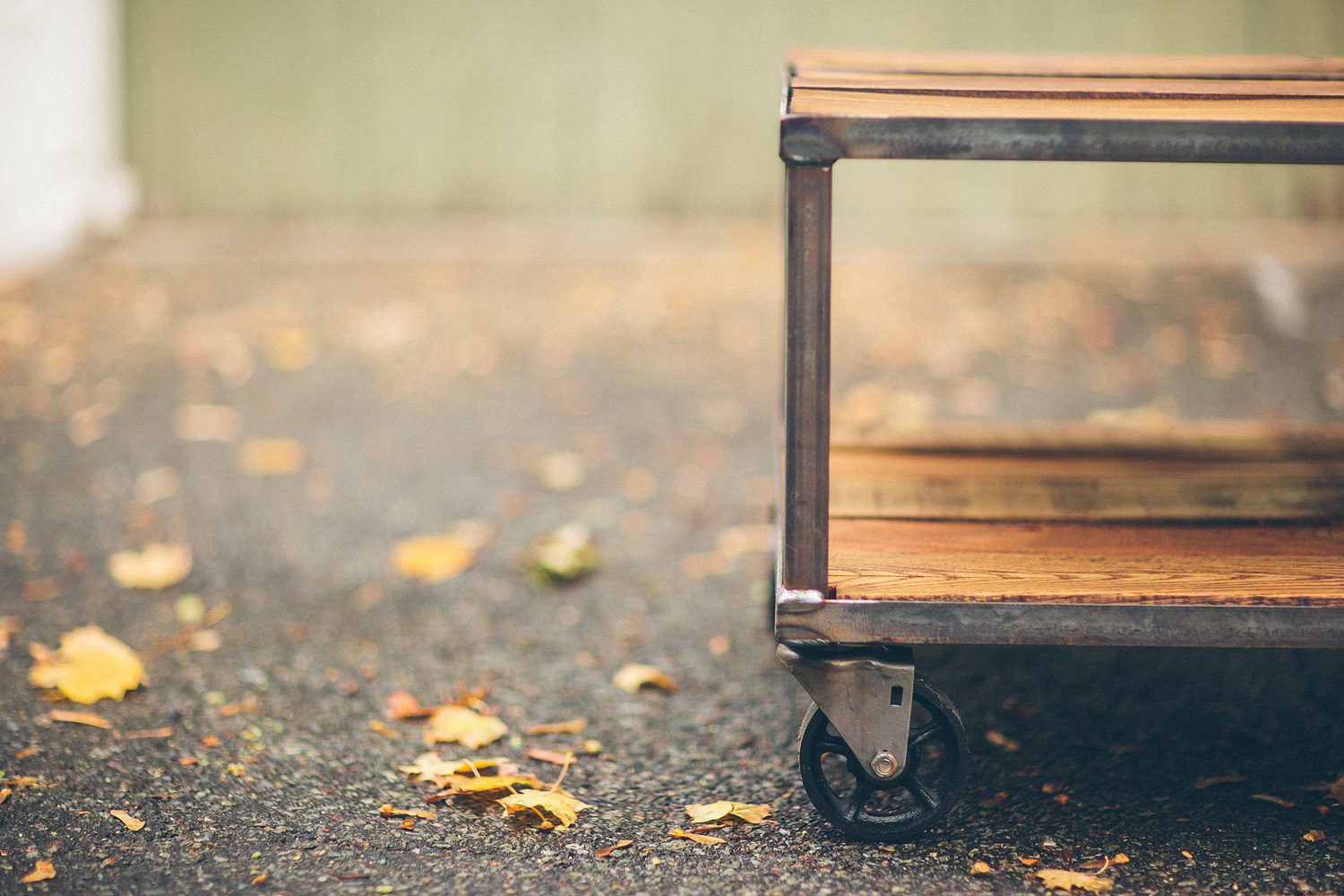

10 30 15 Caster Connection Vintage 9

We designed the polyurethane on iron CC Vintage wheel for a better indoor alternative to the traditional cast iron. The dark polyurethane tread on a cast iron core keeps the rustic vintage look without tearing up wooden floors. The poly will not mark up any floors and is gentle enough to roll on floor tiles, carpet, and wood. It’s the perfect indoor vintage caster.

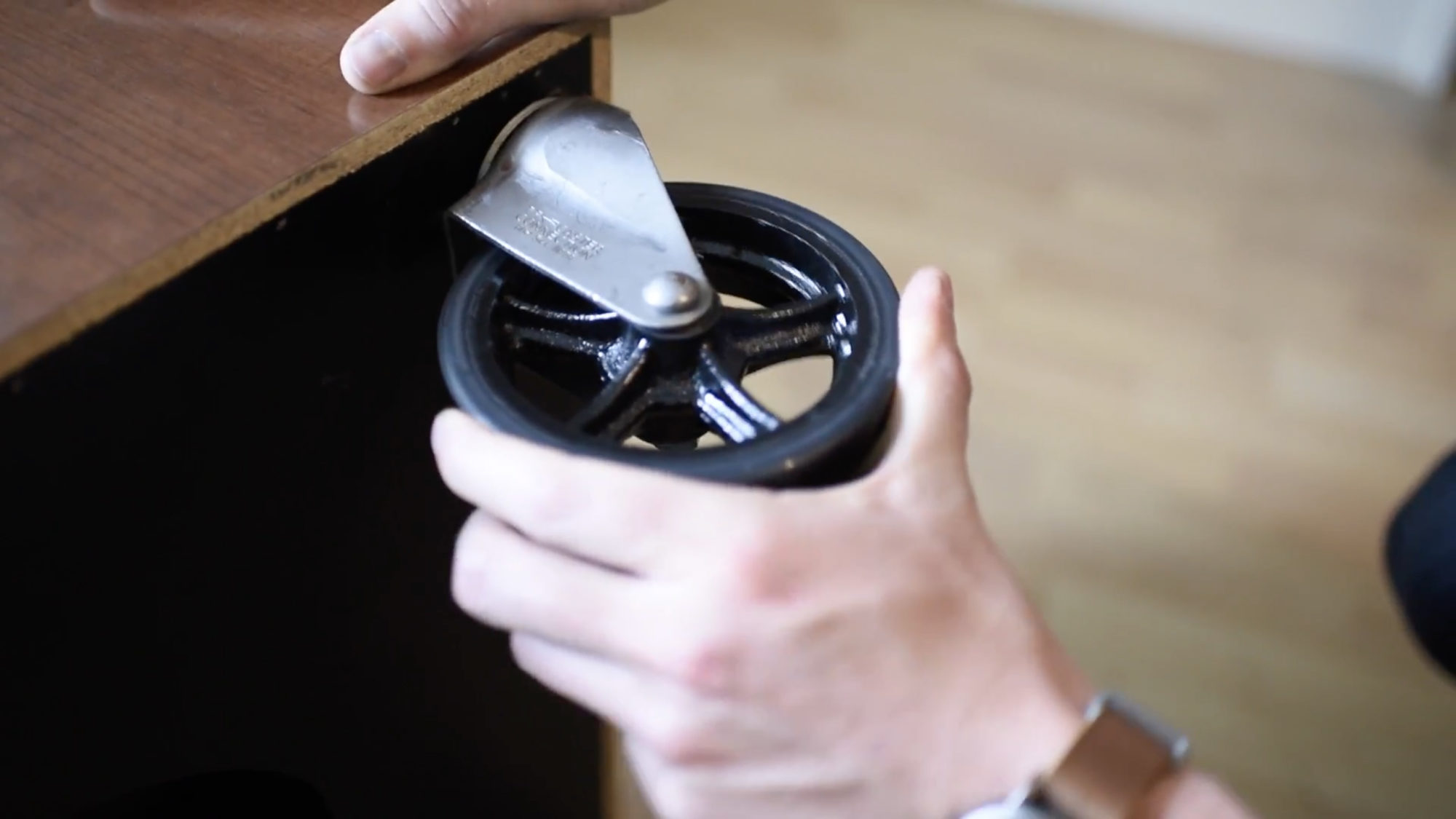

Vintage Promo Still 1

When considering the choice between the cast iron or polyurethane on cast iron CC Vintage wheels, you must consider:

- The weight of the application

- Environment

- Range of mobility

CC Vintage caster wheels are great for stationary applications. We do not recommend using the cast iron wheels on wood or vinyl floors. The polyurethane on cast iron wheels are great for applications that need floor protection.

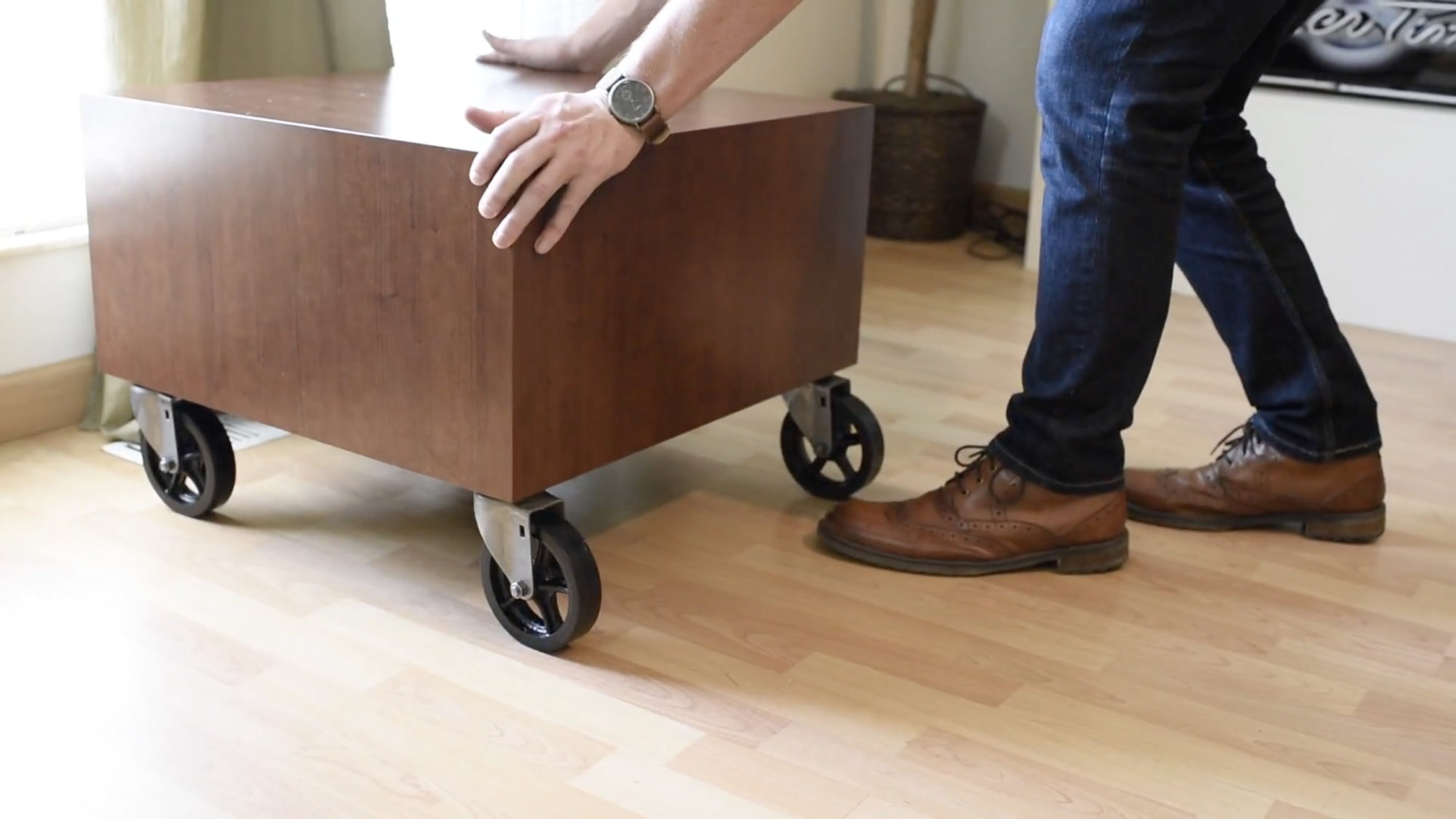

Vintage Promo Still 4

CC Vintage Furniture and Fixtures Inspiration

Need inspiration for your next DIY project? Check out some examples below of the aesthetic that CC Vintage casters can bring to your next masterpiece!

Have a creation you want to share with us? Send it to [Web Marketing AT CasterConnection.com]

SQ CU Retail Industrial Pipe Garment Rack 3 Inch Vintage Polyurethane Tread Swivel Caster 9
SQ CU Retail Industrial Pipe Garment Rack 3 Inch Vintage Polyurethane Tread Swivel Caster 10
SQ CU Retail Industrial Pipe Garment Rack 3 Inch Vintage Polyurethane Tread Swivel Caster 14
SQ CU Retail Industrial Pipe Garment Rack 3 Inch Vintage Polyurethane Tread Swivel Caster 15
SQ CU Retail Industrial Pipe Garment Rack 3 Inch Vintage Polyurethane Tread Swivel Caster 17
SQ CU Retail Industrial Pipe Garment Rack 3 Inch Vintage Polyurethane Tread Swivel Caster 18
SQ FS Retail Industrial Pipe Garment Rack 3 Inch Vintage Polyurethane Tread Swivel Caster 5
SQ Industrial Vintage Bar Cart Polyurethane Tread Swivel Caster 5
SQ Industrial Vintage Bar Cart Polyurethane Tread Swivel Caster 9
SQ Industrial Vintage Bookcase Polyurethane Tread Swivel Caster 21
SQ Industrial Vintage Coffee Table Cast Iron Caster 10
SQ Industrial Vintage Coffee Table Cast Iron Caster 11
SQ CU Retail Industrial Pipe Garment Rack 3 Inch Vintage Polyurethane Tread Swivel Caster 4
SQ Industrial Vintage Coffee Table Cast Iron Caster 12
SQ Industrial Vintage Coffee Table Cast Iron Caster 14
SQ Kitchen Cart Polyurethane Tread Swivel Caster 1
SQ Kitchen Cart Polyurethane Tread Swivel Caster 9
SQ Kitchen Cart Polyurethane Tread Swivel Caster 10
SQ Industrial Vintage Bookcase Polyurethane Tread Swivel Caster 11
10 30 15 Caster Connection Vintage 9

HOW CASTER CONNECTION HAS YOUR BACK

Caster Connection Logo Icon
Icon relationship

RELATIONSHIPS

From day one, we’ve been about our clients. In fact, nearly every caster we’ve developed has been in direct collaboration with our partners. We want you to succeed so we can grow together!

Icon time

EXPERIENCE

We’ve been in the caster business for over 30 years. In that time, we’ve seen the trends come and go. We’ve also developed key connections to give you the inside edge.

Icoon lightbulb

INNOVATION

From the industry-changing CC Apex to the CC Stark, our clients’ needs drive our development and product line. We offer the CC Vintage because of the unique challenges of our clients.

Icon thumbsup

FLEXIBILITY

Because our relationships with our clients are so close, we know what struggles and difficulties they encounter. Regardless of the situation, we will find a solution no matter what.

Key Orange Icon

EXPERTISE

The challenge with casters is to recognize a situation and match that situation with the appropriate casters. We have helped tens of thousands of businesses find the perfect caster.

Icon ribbon

INDUSTRY LEADERSHIP

Caster Connection sets trends and pursues projects that change the industry. For example, we worked on a collaborative project with OSU to change ergonomic standards for good.
