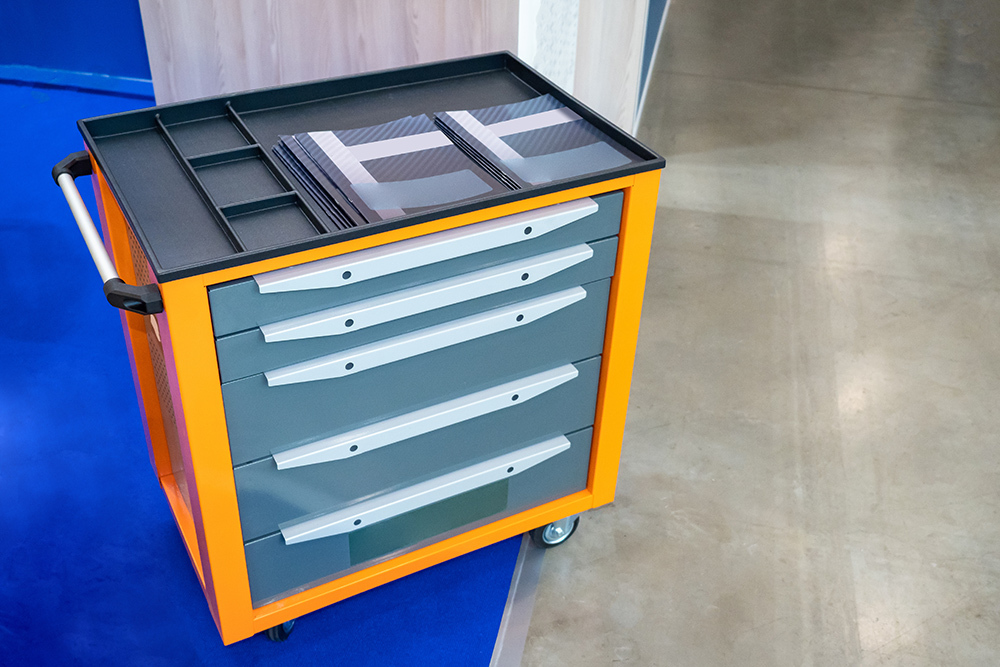

How to Install Casters On Your Rolling Toolbox: Step-by-Step Guide

Upgrading your toolbox with high-quality casters is one of the simplest and most effective ways to boost mobility, reduce strain, and improve your workspace ergonomics. Whether you're swapping out old wheels or outfitting a custom build, this guide will walk you through the installation process and help you make the most of your caster upgrade.

Why Upgrade Your Toolbox Casters?

Your workspace is only as efficient as its mobility. A rolling toolbox gives you quick access to tools and a more ergonomic working posture. If you're dealing with stubborn or low-quality casters, now is the time to upgrade.

High-quality casters like CC Apex offer:

Smooth rolling over rough or uneven surfaces

Greater control and maneuverability

Ergonomic benefits, reducing back and wrist strain

What To Gather Before You Start

Before starting your install, make sure you have the necessary tools and hardware on hand to avoid delays.

Required materials and tools:

Quality casters (e.g., CC Apex)
Matching bolts or mounting hardware (verify bolt pattern)
Wrenches or socket set
Drill with bits (for new mounting holes if needed)
Measuring tape or caliper
Jack or lift (for heavier boxes)
Thread locker (optional, for high-vibration environments)

Always unload your toolbox before lifting. Even a few tools can drastically increase weight and make lifting hazardous.

Pick The Right Caster Setup for Your Space

Not all caster setups are the same. The right configuration depends on your mobility needs and shop layout.

Popular setups:

2 Swivel + 2 Rigid Casters

Provides excellent straight-line control while allowing manageable turning.

4 Swivel Casters

Maximizes maneuverability, especially in tight spaces. Consider total-lock brakes for added control.

Always ensure that three casters can support the full weight of the toolbox to maintain stability on uneven floors.

Installing Your Casters: Step-by-Step

Here’s how to get the job done efficiently and safely:

1. Prep the Toolbox

Remove all tools
Lift one side using a jack or blocks
Clean the mounting surfaces

2. Remove Old Casters

Unbolt or unscrew them
Measure bolt hole spacing
Take a quick photo if helpful

3. Line Up the New Ones

Match holes from the old casters or mark new ones
Make sure rigid casters are aligned correctly

4. Drill and Attach

Drill new holes if needed
Tighten bolts evenly
Use thread locker if your shop sees a lot of vibration

5. Lower and Test

Gently lower the toolbox
Test rolling and brake function
Watch for drag or misalignment

CC Apex: The Caster Your Toolbox Deserves

If you're looking for a caster wheel that delivers performance, durability, and value, CC Apex is your go-to solution. Built for garage and workshop environments, CC Apex combines a quiet, smooth ride with long-lasting tread life and excellent floor protection.

Whether you’re rolling over concrete, tile, or epoxy-coated surfaces, CC Apex helps your toolbox glide with less effort and more control.

Why choose CC Apex?

Polyurethane tread for quiet, non-marking performance
Excellent floor protection, even under heavy loads
Smooth rolling with reduced push/pull force
Compatible with a wide range of rig and mount options
Available in multiple sizes and configurations

Pair it with the CC Peak maintenance-free rig for a sealed, grease-free setup that performs day after day with zero upkeep.

6" CC Apex Swivel Caster

SKU: CC-1210-600200-40-T1

ALT-SKU: CCAPEX-6S

Overall Height

7-1/2"

Wt. Capacity

1,000 lbs.

Wheel Width

2"

Wheel Diameter

6"

$59.85

6" CC Apex Rigid Caster

SKU: CC-1010-600200-40-T1

ALT-SKU: CCAPEX-6R

Overall Height

7-1/2"

Wt. Capacity

1,000 lbs.

Wheel Width

2"

Wheel Diameter

6"

$54.08

6" CC Apex Kingpinless Swivel Caster

SKU: CC-2110-600200-40-T1

ALT-SKU: CCAPEX-6S-KP

Overall Height

7-1/2"

Wt. Capacity

1,000 lbs.

Wheel Width

2"

Wheel Diameter

6"

$85.14

6" CC Apex set - 2 swivel/2 rigid

SKU: CC-10/1210-600200-40-T1-SET4

ALT-SKU: CCAPEX-6S/R-set-2s/2r

Overall Height

7-1/2"

Wt. Capacity

1,000 lbs.

Wheel Width

2"

Wheel Diameter

6"

$249.35

6" CC Peak Maintenance-Free Swivel CC Apex Caster

SKU: CC-3110-600200-40-T1

ALT-SKU: CCAPEX-6S-EMF

Overall Height

7-1/2"

Wt. Capacity

1,000 lbs.

Wheel Width

2"

Wheel Diameter

6"

$120.94

6" Stainless Steel CC Apex Kingpinless Swivel Caster

SKU: DC-S510-600200-45-T1

ALT-SKU: CCAPEX-6S-SS-KP

Overall Height

7-1/2"

Wt. Capacity

1,000 lbs.

Wheel Width

2"

Wheel Diameter

6"

$247.03

6" CC Peak Maintenance-Free Swivel CC Apex Caster w/ Built-In Brake

SKU: CC-3210-600200-40-T1-BIB

ALT-SKU: CCAPEX-6S-EMF-BIB

Overall Height

7-1/2"

Wt. Capacity

1,000 lbs.

Wheel Width

2"

Wheel Diameter

6"

$149.60

6" CC Apex Swivel Caster

SKU: DC-4L10-600200-40-SF

ALT-SKU: CCAPEX-6S-KP-STEM-T1

Overall Height

7-3/8"

Wt. Capacity

1,000 lbs.

Wheel Width

2"

Wheel Diameter

6"

$170.39

6" CC Apex Swivel Caster

SKU: CCAPEX-6S-KP-STEM-L5

Overall Height

8-3/8"

Wt. Capacity

1,000 lbs.

Wheel Width

2"

Wheel Diameter

6"

$155.99

Shop The CC Apex Line

If you're not sure which version to choose, we’re here to help. Contact our team for personalized guidance or request a free Caster Needs Evaluation.

Signs Your Casters Are Installed Correctly

Once the install is complete, it’s worth taking a minute to make sure everything feels right. These simple checks will confirm whether your setup is solid or needs a quick adjustment.

The toolbox rolls smoothly when pushed across your floor, without resistance, pulling, or hesitation.
Swivel casters rotate freely in both directions, making it easy to maneuver in tight spaces.
Brakes engage fully and release cleanly, giving you reliable stopping power without sliding.
The entire box sits level on all four wheels, with no rocking or uneven tilt.
There are no odd sounds, like squeaking or grinding, when the toolbox is in motion.

If you notice any issues, start by checking that all bolts are tight, casters are square to the mounting surface, and the wheels are clear of debris. A few minutes of fine-tuning can make a big difference in how your toolbox performs day to day.

A Few Tips to Keep Things Rolling Smoothly

A little maintenance goes a long way in keeping your casters performing their best. These quick habits will help extend the life of your setup and improve everyday function:

Sweep your garage floor regularly to reduce grit that can wear down tread material
Store heavier tools in the bottom drawers to improve stability and lower the risk of tipping
Lubricate the caster bearings if needed, especially if you’re using a standard rig design
Check all mounting hardware at least once a year, or more often if your toolbox sees heavy use

Looking for a maintenance-free option?
Matching CC Apex caster wheels with the CC Peak maintenance-free rig creates a fully sealed, pre-lubricated solution that requires no greasing. It's a smart choice for long-term, hassle-free performance.

Ready to Roll

Upgrading your toolbox with high-quality casters may be a simple project, but it makes a lasting difference. With the right setup, you’ll move more easily, work more comfortably, and protect the tools and space you depend on.

Movement becomes smoother, safer, and more controlled
Physical strain is reduced throughout the day
Your shop floor stays in better condition
The overall look and feel of your setup improves

A small change like this can transform how your workspace performs.
